Interfacing of lcd with 8051


 LCD (Liquid Crystal Display) : LCD screen is an electronic display module and find a wide range of applications. A 16x2 LCD display is very basic module and is very commonly used in various devices and circuits. These modules are preferred over seven segment and other multi segment LED's. The reasons being: LCDs are economical; easily programmable; have no limitation of displaying special & even custom character (unlike in seven segments), animation and so on. A 16x2 LCD means it can display 16 characters per line and there are 2 such lines. In this LCD each character is displayed in 5x7 pixel matrix. This LCD has two registers, namely, Command and Data.
                      The command register stores the command instructions given to the LCD. A command is an instruction given to LCD to do a predefined task like initializing it, clearing its screen, setting the cursor position, controlling display etc. The data register stores the data to be displayed on the LCD. The data is the ASCII value of the character to be displayed on the LCD. Click to learn more about internal structure of a LCD.

Block Diagram of LCD:

LCD stands for liquid crystal display. They come in many sizes 8x1 , 8x2 ,10x2, 16x1 , 16x2 , 16x4 , 20x2 , 20x4 ,24x2 , 30x2 , 32x2 , 40x2 etc . Many multinational companies like Philips Hitachi Panasonic make their own special kind of lcd's to be used in their products. All the lcd’s performs the same functions (display characters numbers special characters ASCII characters etc).Their programming is also same and they all have same 14 pins (0-13) or 16 pins (0 to 15).

ALL LCDs have
  • Eight(8) Data pins
  • VCC (Apply 5v here)
  • GND (Ground this pin)
  • RS (Register select)
  • RW (read - write)
  • EN (Enable)
  • V0 (Set Lcd contrast)
8-Data pins carries 8-bit data or command from an external unit such as microcontroller.





Lcd have two registers:
1)    Command Register
2)    Data Register
  •      Command Register:   When we send commands to lcd these commands go to Command register and are processed their. Commands with their full description are given in the picture below.
    When RS=0    Command Register is Selected.
  •      Data Register: When we send Data to lcd it goes to data register and is processed their.
  When RS=1    Data Register is selected.

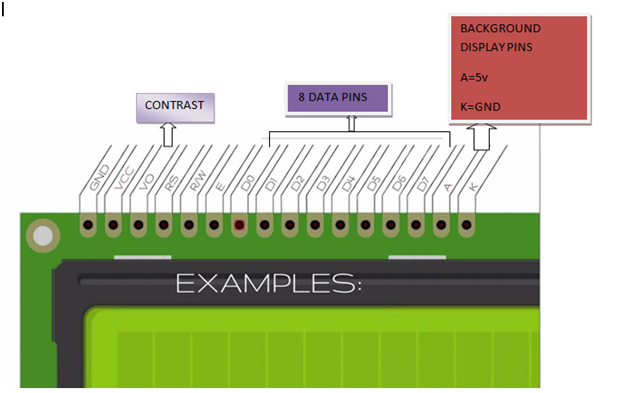

Pin diagram of  LCD:




Pin description:


Pin No:Name Function
1VSSThis pin must be connected to the ground
2VCC Positive supply voltage pin (5V DC)
3VEEContrast adjustment
4RSRegister selection
5R/WRead or write
6E Enable
7DB0 Data
8DB1 Data
9DB2 Data
10DB3 Data
11DB4 Data
12DB5 Data
13DB6 Data
14DB7 Data
15LED+ Back light LED+
16LED- Back light LED-


16×2 LCD module commands:

16×2 LCD module has a set of preset command instructions. Each command will make the module to do a particular task. These commands are very important for displaying data in LCD. The list of commands given below:

Command
Function
0F
For switching on LCD, blinking the cursor.
1
Clearing the screen
2
Return home.
4
Decrement cursor
6
Increment cursor
E
Display on and also cursor on
80
Force cursor to beginning of the first line
C0
Force cursor to beginning of second line
38
Use two lines and 5x7 matrix
83
Cursor line 1 position 3
3C
Activate second line
0C3
Jump to second line position 3
0C1
Jump to second line position1

LCD initialization:

The steps that has to be done for initializing the LCD display is given below and these steps are common for almost all applications.
§  Send 38H to the 8 bit data line for initialization
§  Send 0FH for making LCD ON, cursor ON and cursor blinking ON.
§  Send 06H for incrementing cursor position.
§  Send 01H for clearing the display and return the cursor.

Sending data to the LCD:

The steps for sending data to the LCD module is given below. I have already said that the LCD module has pins namely RS, R/W and E. It is the logic state of these pins that make the module to determine whether a given data input  is a command or data to be displayed.
Make R/W low.
-  Make RS=0 if data byte is a command and make RS=1 if the data byte is a data to be displayed.
 Place data byte on the data register.
-  Pulse E from high to low.
-   Repeat above steps for sending another data.


Interfacing of LCD with 8051:

1)    Display  Welcome  to all on the 1st line:

a)    Circuit:

b)  Code

·        ASM Code:

$mod51
org 00h
back:
  mov A,#01h
  acall command

mov a,#06h
acall command
mov a,#38h
acall command
mov a,#0eh
acall command
mov a,#80h
acall command

mov A,#'C'
acall display
mov A,#'E'
acall display
mov A,#'T'
acall display
mov A,#'P'
acall display
mov A,#'A'
acall display
mov A,#' '
acall display
mov A,#'I'
acall display
mov A,#'N'
acall display
mov A,#'F'
acall display
mov A,#'0'
acall display
mov A,#'T'
acall display
mov A,#'E'
acall display
mov A,#'C'
acall display
mov A,#'H'
acall display
SJMP back

command:
mov P1,A
Clr P3.0
Clr P3.1
setb P3.2
Acall delay
clr P3.2
ret


display:
mov P1,A
setb P3.0
Clr P3.1
setb P3.2
Acall delay
clr P3.2
ret


delay:
   mov R1,#100
    L13: mov R2,#100
       L12: mov R3,#50
         L11: DJNZ R3,L11
        DJNZ R2,L12
      DJNZ R1,L13
  ret

end



Alternate way :

$mod51
org 00h
rs equ p3.0
rw equ p3.1
en equ p3.2
lcd equ p1

mov a,#01h
acall command
mov a,#06h
acall command
mov a,#38h
acall command
mov a,#0eh
acall command

mov a,#80h
acall command

mov r0,#13
mov dptr,#L4
L1: clr a
movc a,@a+dptr
                     acall dATAA
inc dPTR
djnz r0,L1

                     command:

mov lcd,a
clr rs
clr rw
setb en
acall delay
clr en
ret

DATAA:


MOV LCD,A
SETB RS
CLR RW
SETB EN
ACALL DELAY
CLR EN
RET

delay:

   mov r2,#255
o: mov r3,#255
n: mov r4,#10
m: djnz r4,m
   djnz r3,n
   djnz r2,o

ret


org 200h
L4:DB 'Welcome To all',0
                     END



·        C Code:
  #include<reg51.h>

sbit rs=P3^0;
sbit rw=P3^1;
sbit en=P3^2;
unsigned char arr1[]={0x0e,0x01,0x06,0x80,0x38};
unsigned char arr2[]={"Welcome To All"};

void command();
void display();
int j,k,l,m,n;


void delay()
{          int x,y;
for(x=0;x<=100;x++)
{
for(y=0;y<=1275;y++);
}
}

void main()
{
while(1)
{
for(j=0;j<5;j++)
{
P1=arr1[j];
command();
}
for(k=0;k<15;k++)
{

P1=arr2[k];
display();
}

  }
  }
void command()
{
rs=0;
rw=0;
en=1;
delay();
en=0;
}
void display()
{
rs=1;
rw=0;
en=1;
delay();
en=0;
}


c)     Simulation







2)    Display  Welcome  to all on the 1st line and God Bless You on the 2nd line.

a)    Code
·        ASM Code

$mod51
org 00h
rs equ p3.0
rw equ p3.1
en equ p3.2
lcd equ p1

mov a,#01h
acall command
mov a,#06h
acall command
mov a,#38h
acall command
mov a,#0eh
acall command

mov a,#80h
acall command



mov r0,#13
mov dptr,#L4
L1: clr a
movc a,@a+dptr

acall dATAA
inc dPTR
djnz r0,L1


mov a,#0c0h
acall command


mov r1,#13
mov dptr,#L3
L2: clr a
movc a,@a+dptr
acall dATAA
inc dptr
djnz r1,L2


command:

mov lcd,a
clr rs
clr rw
setb en
acall delay
clr en
ret

DATAA:


MOV LCD,A
SETB RS
CLR RW
SETB EN
ACALL DELAY
CLR EN
RET

delay:

   mov r2,#255
o: mov r3,#255
n: mov r4,#10
m: djnz r4,m
   djnz r3,n
   djnz r2,o

ret

org 200h
L4:DB 'Welcome  to all ',0
L3:DB 'God Bless You ',0

END

·        C Code
#include<reg51.h>

sbit rs=P3^0;
sbit rw=P3^1;
sbit en=P3^2;
unsigned char arr1[]={0x0e,0x01,0x06,0x80,0x38};
unsigned char arr2[]={"Welcome To All"};
unsigned char arr3[]={"God Bless You "};
void command();
void display();
int j,k,l,m,n;


void delay()
{          int x,y;
for(x=0;x<=100;x++)
{
for(y=0;y<=1275;y++);
}
}

void main()
{
while(1)
{
for(j=0;j<5;j++)
{
P1=arr1[j];
command();
}
for(k=0;k<15;k++)
{

P1=arr2[k];
display();
}

P1=0xc0;
  command();
for(k=0;k<15;k++)
{

P1=arr3[k];
display();
}

  }
  }
void command()
{
rs=0;
rw=0;
en=1;
delay();
en=0;
}
void display()
{
rs=1;
rw=0;
en=1;
delay();
en=0;
}


b)    Simulation




    3)       Trafic Light



a)    ASM  Code



$mod51
lcd equ p1
rs equ p3.3
rw equ p3.2
en equ p3.1
egr equ p2.0
erd equ p2.1
eyl equ p2.2
wgr equ p2.3
wrd equ p2.4
wyl equ p2.5
ngr equ p0.0
nrd equ p0.1
nyl equ p0.2
sgr equ p0.3
srd equ p0.4
syl equ p0.5
nsen equ p3.7
ssen equ p3.6
esen equ p3.5
wsen equ p3.4
org 0h
acall lcd_ini
mov dptr,#welcome
acall hind
mov a,#0c0h
acall cmd
mov dptr,#welcome1
acall hind
acall delay1
mov a,#01h
acall cmd
mov dptr,#direction
acall hind
mov a,#0c0h
acall cmd
go:
mov dptr,#northgo
acall hind
clr ngr
clr wrd
clr srd
clr erd
acall delay1
acall delay1
acall start
mov dptr,#nerdy
acall hind
setb erd
clr eyl
setb ngr
clr nyl
acall delay2
acall start
mov dptr,#eastgo
acall hind
setb nyl
clr nrd
setb eyl
clr egr
acall delay1
acall delay1
acall start
mov dptr,#esrdy
acall hind
setb srd
clr syl
setb egr
clr eyl
acall delay2
acall start
mov dptr,#southgo
acall hind
setb syl
clr sgr
setb eyl
clr erd
acall delay1
acall delay1
acall start
mov dptr,#swrdy
acall hind
setb sgr
setb wrd
clr syl
clr wyl
acall delay2
acall start
mov dptr,#westgo
acall hind
setb wyl
clr wgr
setb syl
clr srd
acall delay1
acall delay1
acall start
mov dptr,#wnrdy
acall hind
setb wgr
clr wyl
setb nrd
clr nyl
acall delay2
acall start
setb wyl
setb nyl
ajmp go

delay1:
mov r4,#07h
gh: mov r5,#0ffh
ru: acall delay
    djnz r5,ru
    djnz r4,gh
ret
delay2:
mov r3,#04h
gj: mov r2,#0ffh
eu: acall delay
    djnz r2,eu
    djnz r3,gj
ret
start:
mov a,#01h
acall cmd
mov dptr,#direction
acall hind
mov a,#0c0h
acall cmd
ret
hind:
clr a
movc a,@a+dptr
acall dat
inc dptr
jnz hind
ret

lcd_ini:
mov a,#38h
acall cmd
mov a,#01h
acall cmd
mov a,#06h
acall cmd
mov a,#0eh
acall cmd
mov a,#80h
acall cmd
ret
delay:
mov r6,#02h
yu: mov r7,#0ffh
rt:
jnb nsen,ngr1
jnb wsen,wgr1
jnb ssen,sgr1
jnb esen,egr1
djnz r7,rt
djnz r6,yu
ret
ngr1:
acall again
mov p2,#0ffh
mov p0,#0ffh
clr ngr
clr wrd
clr erd
clr srd
ii4: sjmp ii4
wgr1:
acall again
mov p2,#0ffh
mov p0,#0ffh
clr wgr
clr nrd
clr erd
clr srd
nh: sjmp nh
sgr1:
acall again
mov p2,#0ffh
mov p0,#0ffh
clr sgr
clr wrd
clr erd
clr nrd
ii: sjmp ii
egr1:
acall again
mov p2,#0ffh
mov p0,#0ffh
clr egr
clr wrd
clr nrd
clr srd
ii1: sjmp ii1
again:
mov a,#01h
acall cmd
mov dptr,#emergency
acall hind
ret
cmd:
mov lcd,a
clr rs
clr rw
setb en
acall delay
clr en
ret
dat:
mov lcd,a
setb rs
clr rw
setb en
acall delay
clr en
ret

welcome: db 'Welcome to Smart',0
welcome1: db  'Traffic Light Controller',0
direction: db 'N   E   S   W  ',0
northgo: db   'GO  STP STP STP',0
southgo: db   'STP STP GO  STP',0
eastgo:  db   'STP GO  STP STP',0
westgo: db    'STP STP STP GO ',0

nerdy: db     'WaitRDY STP STP',0
esrdy: db     'STP WaitRDY STP',0
swrdy: db     'STP STP WaitRDY',0
wnrdy: db     'RDY STP STPWait',0
emergency: db 'EMERGENCY Plz Wait',0

end

 b) Simulation
